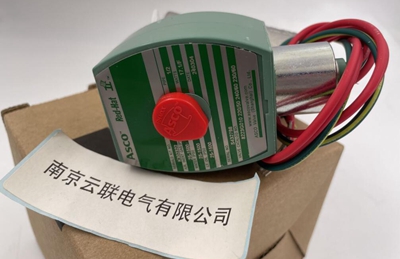

ASCO電磁閥8223G010

ASCO電磁閥8223G010

二位兩通高壓不銹鋼電磁閥

美國ASCO阿斯卡

簡單介紹

ASCO二位兩通高壓不銹鋼電磁閥位二通電磁閥二位二遁電磁閥適用于以蒸汽為加熱介質的加熱器、散熱器、 干燥機及紡織定型機、蒸染機、**真空回潮機、蔬菜烘干機等成套設備的蒸汽管跟進行二位式自動和遠程通斷切換

接口尺寸: G1/2壓力: 25-1500psi類型(通道位置) :先導式

標準:美標公稱通徑: ASCO(mm)工作溫度:常溫

實現溫度自動控制。電磁閥選用于以水或液體為工作介質，

可自動控制或遠程控制水、油、液體等工作介質管路的通斷。

由于本閥采用橡膠密封,故對工作介質的清潔度大大減低，

具有啟閉迅速.可靠性高等優點。電磁閥為二次開閥的先導式電磁閥 ，其結構主要由導閥和主閥組成,

材質:鑄鋼流動方向:換向通口數量:兩位兩通常閉

壓力環境:低壓零部件及配件:配件

形態:角式規格:代替型號8223G003 (銅) ,線國238610-158-D AC220V,

線園238710 DC24V,線國等級MP-C-080,閥體240523-001-F,WP-C-080連接形式:螺紋

品牌:ASCO適用介質:蒸汽用途:鎖閉

電磁閥應保證在電源電壓為額定電壓的15%-10%波動范圍內正常工作。

3.電磁閥安裝后，管道中不得有反向壓差。并需通電數次，

使之適溫后方可正式投入使用。4. 電磁閥安裝前應徹底清洗管道。

通入的介質應無雜質。閥前裝過濾器。5、 當電磁閥發生故障或清洗時，

為保證系統繼續運行，應安裝旁路裝置。6. 接管時注意。

密封材料不可使用過量,如螺紋連接時，接管外螺紋長度不可超過電磁閥內螺紋的有效長度，

并在外螺紋前端半摞距處用銼刀倒棱，自螺紋2牙處開始纏繞密封

ASCO solenoid valve

Two position two way high-pressure stainless steel solenoid valve

Product model: 8223G010

Product exhibitor: ASCO Asca, USA

A brief introduction

Hot selling ASCO two position two way high-pressure stainless steel solenoid valve two position two way solenoid valve two position two escape solenoid valve suitable for steam heating

Medium heaters, radiators, dryers, textile shaping machines, steaming and dyeing machines, vacuum humidifiers, vegetable dryers, etc

The steam pipes of the complete equipment can be switched between two automatic and remote on-off modes,

Interface size: G1/2 Pressure: 25-1500psi Type (channel position): Pilot operated

Standard: American standard, nominal diameter: ASCO (mm), working temperature: room temperature

Realize automatic temperature control. Electromagnetic valves are selected for use with water or liquid as the working medium,

It can automatically control or remotely control the on-off of working medium pipelines such as water, oil, and liquids.

Due to the use of rubber seals in this valve, the cleanliness of the working medium is greatly reduced,

It has the advantages of fast opening and closing, high reliability, etc. The solenoid valve is a pilot operated solenoid valve with a secondary opening, and its structure mainly consists of a pilot valve and a main valve,

Material: Cast steel Flow direction: Reversing port Quantity: Two positions Two normally closed

Pressure environment: Low pressure components and accessories: Accessories

Form: angled specification: replaces model 8223G003 (copper), wire country 238610-158-D AC220V,

Wire park 238710 DC24V, wire national grade MP-C-080, valve body 240523-001-F, WP-C-080 connection form: threaded

Brand: ASCO Applicable medium: Steam Purpose: Locking

The solenoid valve should ensure normal operation within a fluctuation range of 15% -10% of the rated voltage of the power supply.

3. After the installation of the solenoid valve, there should be no reverse pressure difference in the pipeline. And it needs to be powered on several times,

It can only be officially put into use after being warmed up. 4. Before installing the solenoid valve, the pipeline should be thoroughly cleaned.

The medium introduced should be free of impurities. Install a filter in front of the valve. 5. When the solenoid valve malfunctions or is cleaned,

To ensure the continued operation of the system, a bypass device should be installed. 6. Pay attention when taking over.

Sealing materials should not be used excessively. For example, when connecting with threads, the length of the external thread of the connecting pipe should not exceed the effective length of the internal thread of the solenoid valve,

And use a file to chamfer the front half distance of the external thread, and start wrapping the sealing tape from the second tooth of the thread
