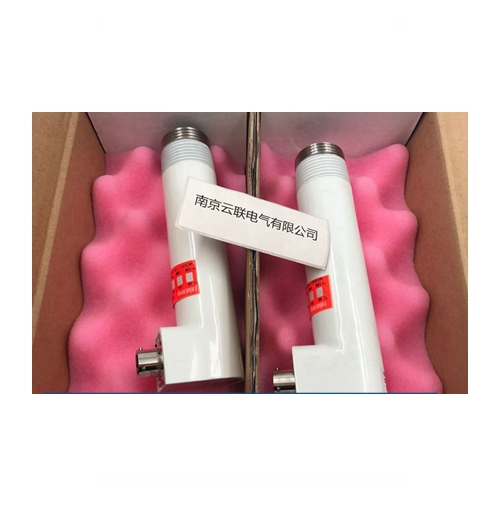

福尼Forney火檢探頭 IDD-II

福尼Forney火檢探頭 IDD-II
Forney的IDD-II系列火焰探測器通過多種火焰探測和鑒別功能滿足公用事業的操作靈活性要求。
產品和配件：
IDD-II紅外探測器過濾（＃6石油和煤）部分＃38321-21
IDD-IIU紅外探測器未過濾（＃2油，＃6石油和煤）部分＃38321-22
IDD-IIL，紅外探測器褐煤燃料部件＃38321-23
冷卻室（可選）部件號381071-01
產品規格：
安裝：1“NPT觀察管接頭
材料：鑄鋼外殼，盆栽電子
電氣：由放大器提供，50 VDC和12 VDC
電氣連接：MS Bayonet連接器隨附電纜，需要1/2“柔性導管
冷卻空氣要求：前部安裝應用 - 最小冷卻空氣流量為10 scfm（17 m3 / hr）
最高溫度120°F（48°C）
光纖應用 - 最小冷卻空氣流量為15 scfm（25 m3 / hr）
最高溫度120°F（48°C）
溫度額定值：32°F至140°F（0°C至60°C）
帶冷卻室：適用于140°F至200°F（60°C至93°C）的環境溫度
必須使用分庭。
濕度：0-95％相對濕度，無冷凝
運輸重量：21盎司
批準：Factory Mutual（FM）
傳感器/波長：IDD-IIU 400  -  3300nm
IDD-II 700  -  3300nm
IDD-IIL 700  -  3300nm
（IDD-IIL探測器在較低閃爍時具有更好的火焰閃爍頻率響應
頻率范圍> 5到18 Hz）
探測器頭
IDD-II規格表
＃404005-05

UV-4探測器規格表
＃404005-17

放大器
IDD 9000放大器規格表
＃404005-21
RM-IDD和PM-IDD IIIA放大器規格表
＃404005-16
DR6101E放大器規格表
＃404005-07

冷卻室
IDD冷卻室規格表
＃404005-18
UV-4冷卻室規格表
＃404005-20

Forney Flame Detector Probe IDD-II contact us sale [email protected]

Forney's IDD-II series flame detectors meet the operational flexibility requirements of utilities through a variety of flame detection and identification functions.

Products and accessories:

IDD-II infrared detector filtration (# 6 oil and coal) part # 38321-21

IDD-IIU infrared detector unfiltered (# 2 oil, # 6 oil and coal) part # 38321-22

IDD-IIL, infrared detector lignite fuel part # 38321-23

Cooling chamber (optional) part number 381071-01

Product specification:

Installation: 1 "NPT observation pipe joint

Material: cast steel shell, potted electronics

Electrical: supplied by amplifier, 50 VDC and 12 VDC

Electrical connection: cable supplied with MS Bayonet connector, requires 1/2 "flexible conduit

Cooling air requirements: Front mounted applications - minimum cooling air flow of 10 scfm (17 m3/hr)

Maximum temperature 120 ° F (48 ° C)

Fiber Optic Applications - 15 scfm (25 m3/hr) minimum cooling air flow

Maximum temperature 120 ° F (48 ° C)

Temperature rating: 32 ° F to 140 ° F (0 ° C to 60 ° C)

With cooling chamber: suitable for 140 ° F to 200 ° F (60 ° C to 93 ° C) ambient temperature

Chambers must be used.

Humidity: 0-95% relative humidity, non condensing

Shipping weight: 21 ounces

Approved by: Factory Mutual (FM)

Sensor/wavelength: IDD-IIU 400 - 3300nm

IDD-II 700 - 3300nm

IDD-IIL 700 - 3300nm

(IDD-IIL detector has better flame flicker frequency response at low flicker

Frequency range>5 to 18 Hz)

Detector head

IDD-II Specification Sheet

＃404005-05

Specification table of UV-4 detector

＃404005-17

amplifier

IDD 9000 Amplifier Specification Sheet

＃404005-21

RM-IDD and PM-IDD IIIA Amplifier Specification Sheet

＃404005-16

DR6101E amplifier specification table

＃404005-07

Cooling chamber

IDD Cooling Chamber Specification Sheet

＃404005-18

UV-4 Cooling Chamber Specification Sheet

＃404005-20
