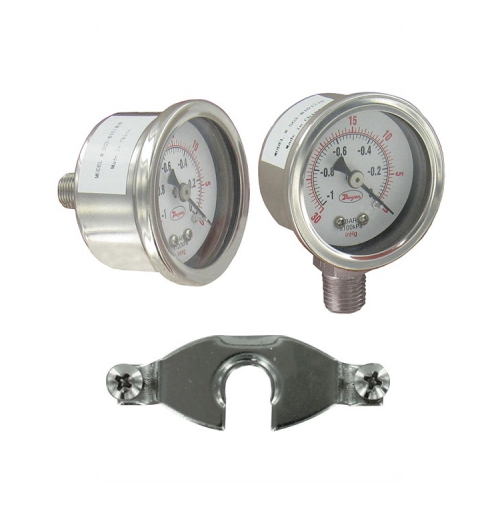

Dwyer壓力表SG3pressure gauge SG3

Dwyer壓力表SG3pressure gauge SG3

1.5英寸工業壓力表

SG3壓力表可以顯示PSI和Bar（×100KPA）兩種單位，精度為±2.5%。SG3的304不銹鋼外殼和接觸液體部分使用316不銹鋼的設計有非常好的化學相容性。覆蓋范圍從全真空到300PSI,可以承受的最大溫度達到140°F (60°C)，底部或者背部1/8" NPT連接方式可選。

產品規格：

介質：兼容氣體和液體

元件材質：316不銹鋼管，316不銹鋼連接器

外殼：304不銹鋼

透鏡：聚碳酸脂

精確度：±2.5% FS

壓力范圍：滿標度

溫度范圍：-4 to 140°F (-20 to 60°C)

尺寸：1.5" (40 mm)

連接件：1/8" NPT.

重量：2.2 oz (63 g) 底部連接, 2.3 oz (65 g) 背部連接

Dwyer pressure gauge SG3

1.5 inch industrial pressure gauge

SG3 pressure gauge can display PSI and Bar（ × 100KPA), with an accuracy of ± 2.5%. The 304 stainless steel shell and liquid contact part of SG3 are designed with 316 stainless steel, which has very good chemical compatibility. The coverage range is from full vacuum to 300PSI, and the maximum temperature that can be withstood is 140 ° F (60 ° C). The bottom or back 1/8 "NPT connection mode is optional.

Product specification:

Medium: compatible with gas and liquid

Element material: 316 stainless steel pipe, 316 stainless steel connector

Shell: 304 stainless steel

Lens: polycarbonate

Accuracy: ± 2.5% FS

Pressure range: full scale

Temperature range: - 4 to 140 ° F (- 20 to 60 ° C)

Size: 1.5 "(40 mm)

Connection: 1/8 "NPT

Weight: 2.2 oz (63 g) bottom connection, 2.3 oz (65 g) back connection
