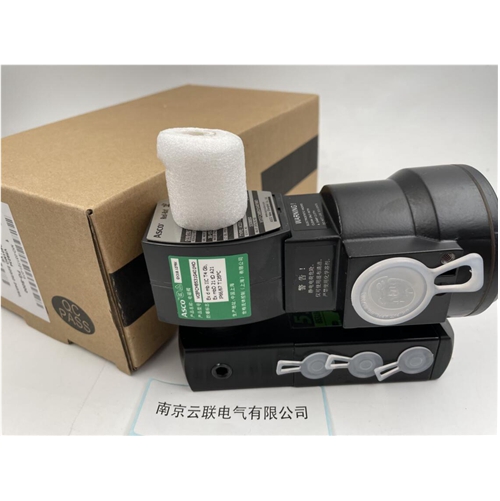

ASCO 電磁閥 solenoid valve VCEFCMB531G40IMO

ASCO 電磁閥  solenoid valve  VCEFCMB531G40IMO

美國ASCO電磁閥技術參數:

動作方式:直動型、先導型、反沖型(無壓差型)。

根據口徑大小、介質壓力選擇其中-種。

控制方式:常閉式、常開式。根據工況要求選擇。

電源電壓: AC24V、AC36V、AC127V、 AC220V. AC380V。

DC12V、DC24V. DC36V. DC72V. DC110V. DC220V。

根據工況要求選擇。

介質溫度: -50- -60C、-200- -60C. 0- -60C、 0- -120C、0- -200C、 0- -250C、 0- -300C、0- -350C根據工況要求選擇。

環境溫度: -10- -40C、-20- -40C、-40- -40C、-10- -60C。根據I況要求選擇。

聯接方式:內螺紋連接、法蘭連接。根據工況要求選擇。但是通徑超過DN50 ,均為法蘭連接。

閥體材質:球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼。?根據I況要求選擇。

美國ASCO電磁閥工作性質:電磁閥-般流通系數很小,而且工作壓力差很小。

比如一般25口徑的電磁閥流通系數比15口徑的電動球閥小很多。

電磁閥的驅動是通過電磁線圈,比較容易被電壓沖擊損壞。

相當于開關的作用,就是開和關2個作用。

電磁閥-般斷電可以復位,電動閥要這樣的功能需要加復位裝置。

ASCO solenoid valve VCEFCMB531G40IMO

Technical parameters of ASCO solenoid valves in the United States:

Action mode: direct action type, pilot type, recoil type (no pressure difference type).

Choose one of them based on the caliber size and medium pressure.

Control mode: normally closed or normally open. Select according to the requirements of the working conditions.

Power supply voltage: AC24V, AC36V, AC127V, AC220V AC380V。

DC12V、DC24V. DC36V. DC72V. DC110V. DC220V。

Select according to the requirements of the working conditions.

Medium temperature: -50-60C, -200-60C 0-60C, 0-120C, 0-200C, 0-250C, 0-300C, 0-350C are selected according to the working conditions.

Environmental temperature: -10-40C, -20-40C, -40-40C, -10-60C. Select according to the requirements of condition I.

Connection method: internal thread connection, flange connection. Select according to the requirements of the working conditions. However, if the diameter exceeds DN50, all connections are flange connections.

Valve body material: ductile iron, cast steel, 304 stainless steel, 316 stainless steel.? Select according to the requirements of condition I.

The working properties of ASCO solenoid valves in the United States: The general flow coefficient of the solenoid valve is very small, and the working pressure difference is very small.
