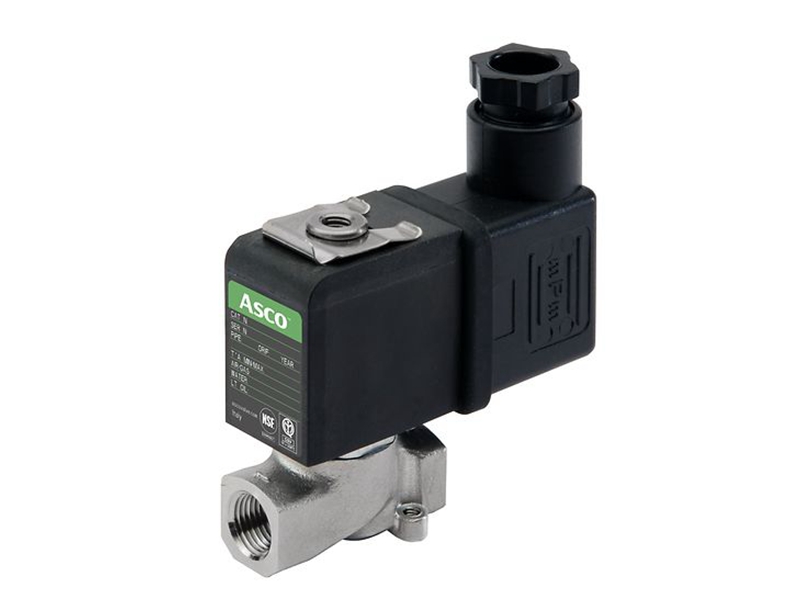

ASCO 三通電磁閥 SC8356A002VDC24/DC

ASCO 三通電磁閥 SC8356A002VDC24/DC

規格

氣門執行電磁閥直接作用

閥體材料黃銅、不銹鋼

介質空氣、惰性氣體、氧氣、水、輕油、蒸汽、熱水

管道/端口尺寸1/8" ; 1/4” ;襯墊安裝

端口類型G ISO228/1-G BSPP , NPTF , G螺紋，襯墊安裝

功能3路3/2常閉，3路-2/2常開, 3路-3/2通用

流量0.05-0.4 Kv ( 0.06-0.46 Cv )

電壓100至240 AC/DC電壓范圍, 12DC , 24 DC，48DC|50，50/60，60

最大壓差/最大工作壓力10.3-34.5巴，150-500磅/平方英寸

ASCO 356系列，也稱為8356 ,三通緊湊型電磁閥具有重量輕、結構緊湊的

設計,用于控制單作用執行機構或填充或排放循環。黃銅或不銹鋼結構具有

廣泛的彈性體和適用于特殊服務應用的緊密關閉提升閥。

Specifications

Valve ActuationSolenoid - Direct Acting

Body MaterialBrass, Stainless Steel

MediaAir, Inert Gas, Oxygen, Water, Light Oil, Steam, Hot Water

Pipe / Port Size1/8 "; 1/4 "; Pad-Mount

Port TypeG ISO228/1-G BSPP, NPTF, G-Thread, Pad-Mount

Function3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open, 3 way - 3/2 Universal

FlowFrom 0.05 - 0.4 Kv (0.06 - 0.46 Cv)

Voltage100 to 240 AC/DC Voltage Ranging, 12 DC, 24 DC, 48 DC | 50, 50/60, 60

Max Differential / Max Operating Pressure10.3-34.5 Bar, 150-500 PSIG yunlian inquiry and quotation [email protected]

The ASCO Series 356, also known as 8356, 3-way compact solenoid valves have a lightweight, compact design for the control of single-acting actuators or filling or draining cycles. The brass or stainless steel constructions feature a wide range of elastomers and tight shutoff poppets for specialty service applications.
