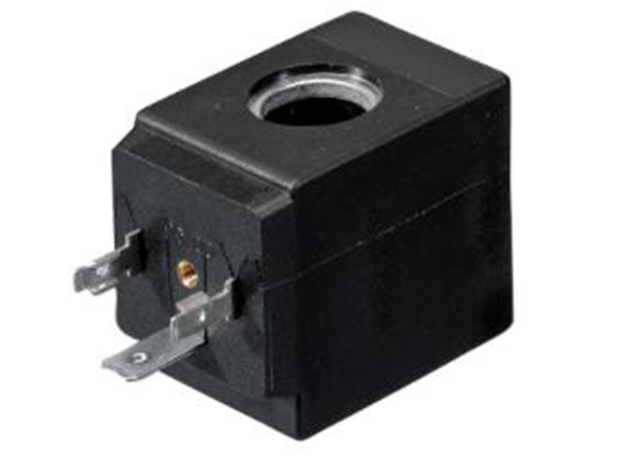

ACL COILS 線圈
| Coils | ||||||||||
| TYPE | CODE | ALTERNATE CURRENT FREQUENCY 50/60Hz VOLTAGE VOLT | DIRECT CURRENT VOLTAGE VOLT | POWER | VOLTAGE TOLLERANCE | CONNECTOR | ED SERVICE | |||
| F Insulation Class | H Insulation Class | AC VA | DC Watt | AC | DC | |||||
 Series 2 | 20A 20B 20C 20D 20E 20F 20G 200 201 202 ----- - - - - - - | 22A 22B 22C 22D 22E 22F 22G 220 221 222 ------ U25B (UL) U25D (UL) U25E (UL) U25F (UL) U250 (UL) U251 (UL) | 12 24 48 110 220/230 240 380 - - - ------ 24V/60Hz 120/60Hz 230/60Hz 240V/60Hz - - | - - - - - - - 12 24 48 ----- - - - - 12 24 | 15 15 15 15 15 15 15 - - - ----- 15 15 15 15 - - | - - - - - - - 10 10 10 ----- - - - - 10 10 | +15% -10% | ±10% | 10349000 10349060 10349001 | 100% |
 Series 3 | 30A 30B 30C 30D 30E 30F 30G 300 301 302 ---- - - - - - - - | 32A 32B 32C 32D 32E 32F 32G 320 321 322 ----- U35B (UL) U35D (UL) U35E (UL) U35F (UL) U350 (UL) U351 (UL) V32E(VDE) | 12 24 48 110 220/230 240 380 - - - ----- 24V/60Hz 120V/60Hz 230V/60Hz 240V/60Hz - - 220/230V 50/60Hz | - - - - - - - 12 24 48 ----- - - - - 12 24 - | 8 8 8 8 8 8 8 - - - ---- 8 8 8 8 - - 8 | - - - - - - - 6.5 6.5 6.5 ----- - - - - 6.5 6.5 - | +15% -10% | ±10% | 10348000 | 100% |
 Series 4 | 40A 40B 40C 40D 40E 40G 400 401 402 ----- - - | 42A 42B 42C 42D 42E 42G 420 421 422 ----- 450 (UL) 451 (UL) | 12 24 48 110 220/230 380 - - - ----- - - | - - - - - - 12 24 48 ---- 12 24 | 11 11 11 11 11 11 - - - ---- - - | - - - - - - 5 5 5 ---- 8 8 | +15% -10% | ±10% | 10349000 10349060 10349001 | 100% |
 Series 5 | - - - - - - - - - - | 52A 52B 52C 52D 52E 52F 52G 520 521 522 ----- U55B (UL) U55D (UL) U55F (UL) U550 (UL) U551 (UL) | 12 24 48 110 220/230 240 380 - - - ----- 24V/60Hz 120V/60Hz 240V/60Hz - - | - - - - - - - 12 24 48 ----- - - - 12 24 | 30 30 30 30 30 30 30 - - - ---- 20 20 20 - - | - - - - - - - 27 27 27 ---- - - - 14 14 | +15% -10% | ±10% | 10349000 10349001 10349060 | 100% |
 Series 6 | 60014 60048 60114 60148 60012 60112 | - - - - - - | - - - - - - | 12 12 24 24 12 24 | - - - - - - | 4 8 4 8 2 2 | ±5% | ±5% | 10348040 | 100% 25% 100% 25% 100% 100% |
 Series 7 | 75BD 75CD 75DD 75ED 751D | 24 48 110-120 220-230 - | - - - - 24 DC | 5.3W 5.3W 5.2W 5.1W - | - - - - 5.4W | |||||
 Series A6 - X6 ATEX | A6B - X6B A6C - X6C A6D - X6D A6E - X6E A60 - X60 A61 - X61 A62 - X62 | 24 48 110-120 220-240 - - - | - - - - 12 24 48 | 12VA | 8 | 100% | ||||
